Control system |
PLC
– Brand: DELTA
– Origin: Taiwan, China
Touch type control LCD screen
– Brand: DELTA
– Origin: Taiwan, China
– Note: English/Chinese language |
|
Electric cabinet |
Electric cabinet
– Working voltage: 380V±5% 3 phase 50Hz
– Control voltage : AC220V Single phase 50Hz DC24V
– Vertical closed electric cabinet, numerical control part are equipped with reactance filter device, equipped with air conditioning.
– Equipped with transformer, DC part with voltage regulator device.
– Low voltage electrical parts, relay Schneider |
|
Coolant supply system |
Coolant supply tank
– Capacity: 300L
– Material: Steel + surface spray plastic
– Non-woven
Filter paper filtering system
– Magnetic separator
Strong refrigerating device
– Power : 380V 3 phase
– Separate power interface for cooling liquid. At the same time equipped with temperature monitoring device. |
|
Workpiece carrier/ holder |
Specified workpiece carrier/holder
– Quantity: 6 pcs/set
– Material: Epoxy resin |
Solve Critical Grinding Challenges with Precision Double Disc Technology
Difficult Flatness Control After Grinding
Traditional grinding processes may create uneven material removal between two surfaces, making it difficult to maintain high flatness and parallelism requirements.
For precision components, poor flatness can affect assembly accuracy, contact performance and product reliability.

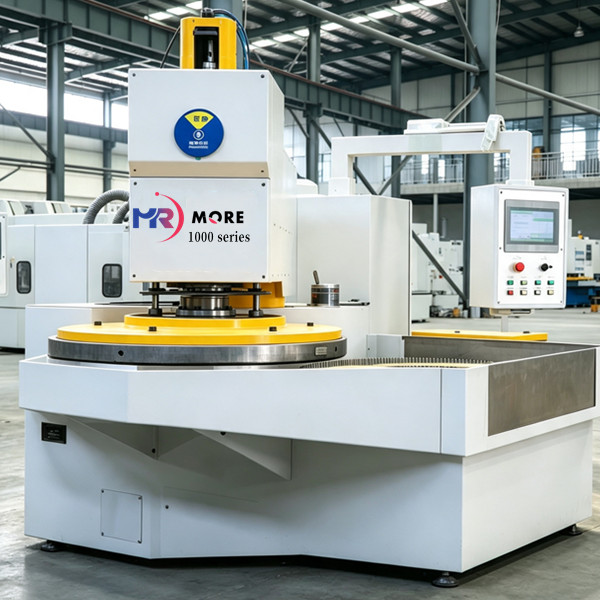

MORESUPERHARD Double Disc Grinding Machine processes both sides simultaneously through upper and lower grinding plates.
Thickness Tolerance and TTV Variation
Maintaining consistent thickness across high-volume production is challenging, especially for precision components such as wafers and thin parts.
The integrated online thickness measurement system continuously monitors workpiece dimensions. Combined with CNC parameter control, the machine improves thickness consistency and reduces variation during mass production.
Grinding Heat Causes Plate Deformation
During continuous grinding operations, heat accumulation may influence grinding plate stability and machining accuracy.
Solution: The constant temperature cooling system maintains stable temperature conditions for the processing plate.
